The most useful part of a lesson may be the diagram a teacher builds with the class, not the slides prepared beforehand. But once the next class starts, that explanation can be hard to recover unless there is a clear saving routine.
To save smart board notes reliably, identify the application holding the notes, save an editable original where supported, export a reading copy and reopen it before sharing. Menu names and available formats vary by software, operating system and account. The display itself does not determine every export option.
Why saving and exporting are different jobs
An editable lesson file is intended for continuing work in its application. A reading copy is intended for someone who may not have that application. Keeping both, when available, helps avoid rebuilding a lesson from a flattened image.
This distinction appears in current product documentation. ViewSonic's myViewBoard 3.0 export guidance, updated August 17, 2026, describes exporting a canvas to PDF or image rather than its OLF format for distribution or archiving. SMART's iQ 4 documentation describes its own whiteboard export choices and conditions.
Those instructions belong to those products. They demonstrate why teachers should check the installed application's documentation, not assume one universal “save” button or that a particular app comes with every smart board.
1. Find out where the writing lives
Before class, create a sample page and add a short note. Identify whether you are writing in the board's whiteboard app, a document editor, a connected computer's software or a temporary annotation layer over another screen.
These may save separately. Writing over a displayed document does not necessarily change the underlying document. Likewise, seeing a laptop's content on a board does not establish where the annotations will be stored.
Use a one-page rehearsal
Add a heading, a diagram and a handwritten correction. Save using the documented process, close the file and reopen it. Then check whether the same material is present. Do this before using the workflow for notes you cannot easily recreate.
If your lesson depends on a connected laptop, establish that connection first. Our interactive display USB-C checklist covers that separate setup task.
2. Save an editable original before exporting
If the application offers a native project or lesson format, keep a copy in an approved location. Give it a useful filename, such as 2026-09-22_science_plant-parts_class-notes_v1. Avoid student names in shared filenames unless your school specifically requires and approves that practice.
Keep the prepared lesson separate from the version annotated during class. A clean master lets you reuse the activity; the class copy preserves that group's explanation. Check how your application handles “Save,” “Save as” and automatic saving before relying on them.
A file saved only on a shared display may not be available in another room. Confirm the actual destination rather than assuming a saved-file message means it has reached your school storage.
3. Choose a reading copy for the audience
PDF for a sequence of pages
Where supported, PDF can be a practical distribution format for lesson pages. Check whether the export includes the current page, selected pages or the whole lesson. A long canvas may also need a deliberate page layout to avoid cutting an explanation into awkward fragments.
Images for a single diagram
An image can be useful for placing one worked example into an assignment. Check that the resolution is sufficient at the size students will view it. Taking a quick photograph of the screen can introduce reflections, perspective distortion and unnecessary background details.
Native files for continued editing
Use the application's editable format when a colleague needs to change the lesson and has compatible software. Do not assume that importing a PDF restores the original movable objects, ink or interactive activities. Keep the original independently of the export.
Do not expect a static reading copy to reproduce every video, animation or interactive exercise. Provide a short explanation or an approved link when the lesson depends on something that does not survive export.
4. Check the exported file on another device
Open the copy in the kind of viewer your students will use. A successful export notification is not a visual quality check.
- Completeness: are the first, middle and final pages present?
- Annotations: did handwriting, corrections and highlights survive?
- Layout: are diagrams or notes clipped at the edges?
- Legibility: can the explanation be read on a smaller screen?
- Context: does the file make sense without the live narration?
- Privacy: are unrelated names, messages or account details absent?
For a plant-science lesson, a labeled diagram is more useful than a drawing with unexplained circles. Add a brief text summary of the main idea. Do not assume an image-based PDF makes handwriting searchable or provides accessible text for every reader.
5. Share the checked copy, not the working folder
Use the school's approved learning platform or storage service. Confirm the audience and permissions before posting the link. Test access through an authorized test account or the platform's supported student-view function rather than making the file public just to avoid a permissions problem.
A QR code, if your software offers one, is a way to open a destination; it does not by itself establish who can access that destination. Check whether the link expires and what happens after you end the display session.
Publish a clearly named reading copy and keep the editable source in its intended working location. If you correct an error later, label the revised version so students know which copy to use.
6. Finish the shared-room session
Once the saved copy has been verified, follow the school's process for closing files and signing out. Check that the next user cannot reopen your private files through recent items or an active account. Do not delete the only local copy before confirming the saved destination is usable.
For wider shared-device controls, see our school display security checklist. Saving classroom notes is a teaching routine, but the storage and account settings should still follow school policy.
What to test on a KEINONE smart board

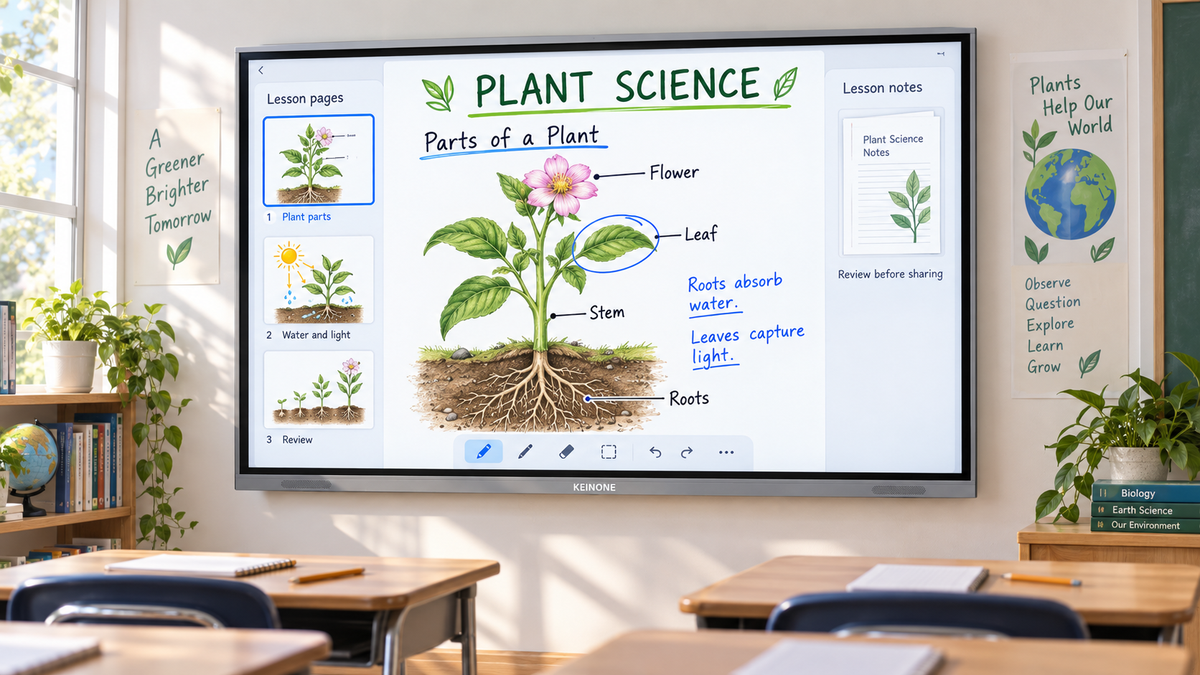

The KEINONE 75-inch interactive smart board is listed for digital whiteboarding, document annotation and wireless sharing. Ask KEINONE to identify the supplied whiteboard application and demonstrate the required save and export workflow on your selected configuration.
Bring a sample lesson and ask to see it reopened on another device. Confirm available formats, destination choices and whether annotations made over external content are included. This guide does not claim that SMART iQ, myViewBoard or a specific PDF-export feature is bundled with KEINONE.
FAQ
Why are my annotations missing from the exported document?
They may belong to a separate annotation layer or application. Check where the writing was created and use that application's documented save or capture process. Verify the result before sharing.
Is a screenshot enough?
It may suit one simple page, but it can miss off-screen material and does not preserve an editable lesson. Use a supported full-page or multi-page export when appropriate.
Can students open the original whiteboard file?
Only if they have a compatible application or supported viewer. A checked reading copy is often easier to distribute; confirm the actual format and access requirements.
What is the simplest reliable routine?
Save the original, export the required pages, reopen the copy, check permissions and then end the session. Rehearse those steps on the installed software before class.
The lesson is not safely shared until the recipient can open and understand the saved copy.
